body shape mustang - cyclone

sweedlog1

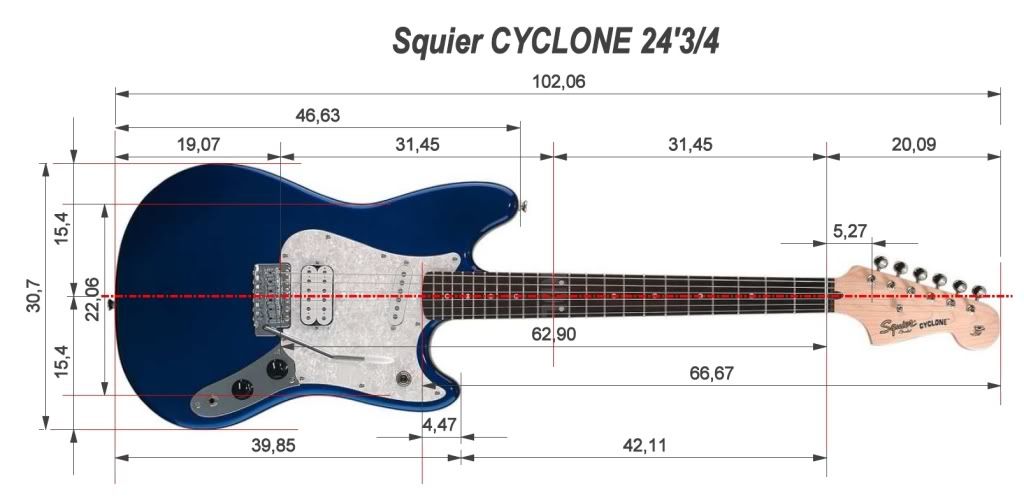

Hi everybody , a topic to understand differences of body between all theses guitars

its in cm

So here it's easy to see that the new MUSTANG pawn shop is realy a new body shape for short scale

good bye !!!

Doug

Sweed, thanks for the detailed comparison. Never would have guessed...well, I'm not doin research to buy a Mustang right now so I haven't been paying close attention to detail. But very useful so I'm savin this in my Mustang data bank.

By the way, I hope your "good bye" is not final. 😲 I'd love to see a similar graphing of the original 1965 Mustang (my guitar) for comparison to the reissued Mustangs. Can you do?

Cheers,

sweedlog1

Hi Doug !! i found some pic but not as well as i need :

they change litle in 10 years , another reason is maybe the country of built, and the tools used to cut it

thx for u're interest of this work 😁
