Pickup Selector Switching Mod

This article brought to you by
GM Arts Home Page
(re-used with permission)

Hi,
There are 2 three position switches on my Fender Mustang(or Jag-Stang). I found out that they are On-Off-Phase. I also found out that phase lowers the frequency on the guitar single so it sounds really brittle and single coily. There is a volume control and tone knob. Mustangs have two single coils. I want to find new ways to wire the guitars. I don’t like the phase setting at all and I would like to get rid of it.
Thanks…

NOTE: Mustangs have 2 single coils and Jag-Stangs have 1 single coil and 1 humbucker. Even though the pickup configuration is different they both are wired exactly the same.

(below quoted from GM arts)

Anyway, it is crazy that there are 9 possible switching combinations, and only 4 different sounds (plus both off). If you want to preserve the original appearance, I’d recommend changing one of the 3-way switches to work as a pickup selector, and use the other switch to give you:

  • control bypass (ie full volume and tone)
  • volume control only
  • volume + tone control (normal)

Regards,
GM Arts

Schematics

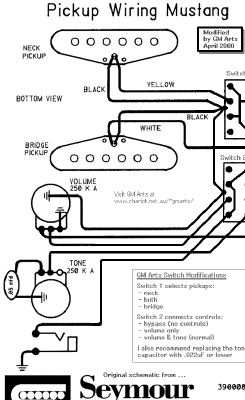

GM Arts modified schematic

GM Arts modified schematic
GM Arts modified schematic

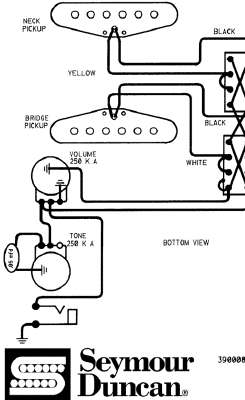

original schematic drawn by Seymour Duncan.

Fender Mustang Schematic
original Seymour Duncan schematic
