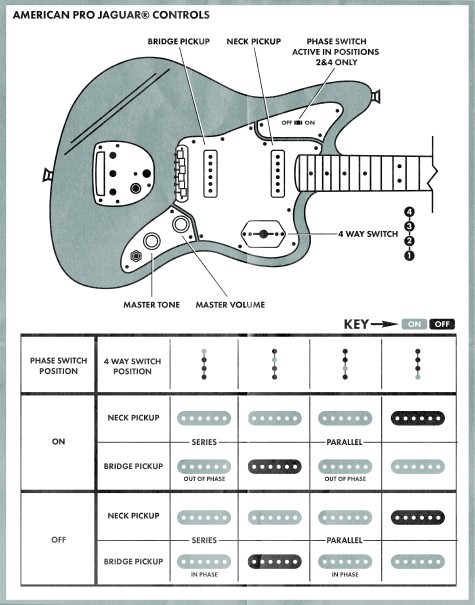

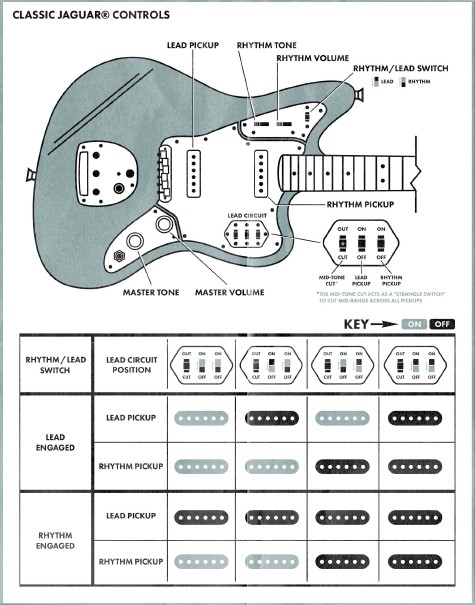

New to the Fender Jaguar or just want to learn more about all those switches? Fender recently published an article detailing how the switches work with some nice images showing the various switch combinations.
Please make note of the on/off colors in the key.
(from full Fender article here: Fender Tech-Talk - Jaguar Controls)
(Note: we copy Fender content locally due to the regular moving and removing of resources from their website.)
